Description
-

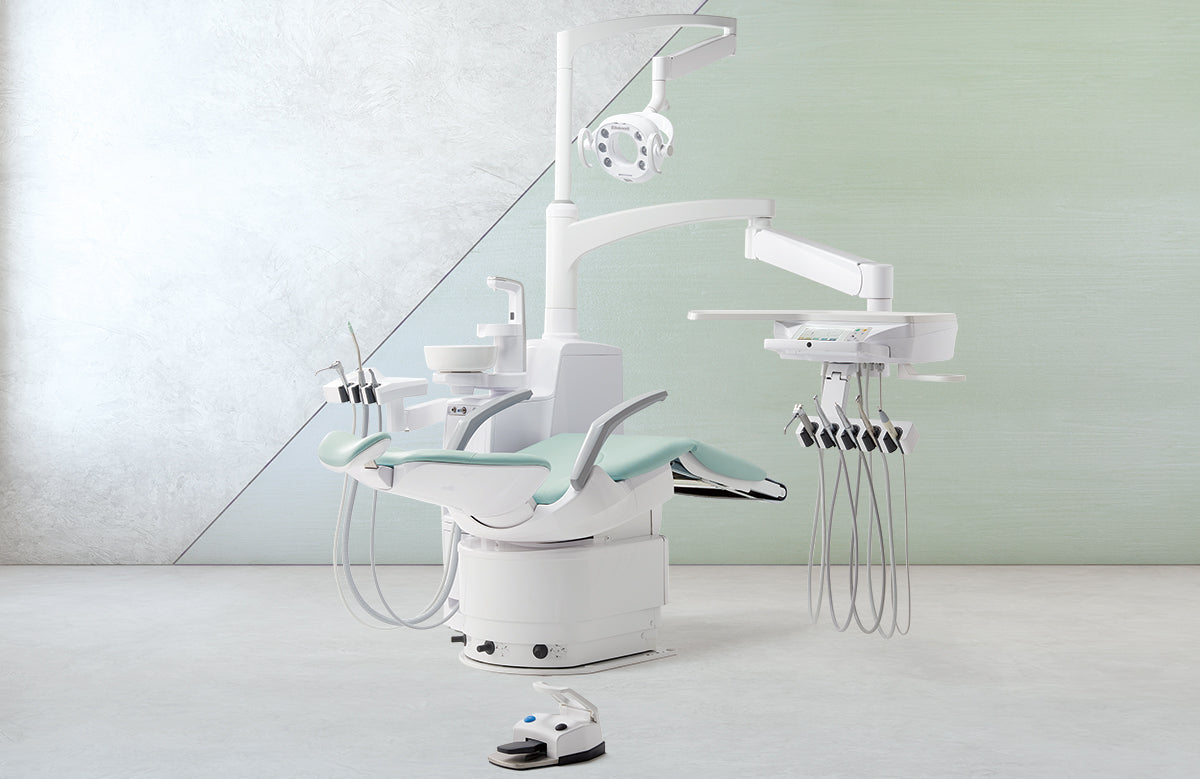

Chair
Smooth and Relax
The hydraulic mechanism ensures smooth and quiet movement of the joints and provides a comfortable feeling for patients. The new twin-axis headrest system, capable of making a wide range of adjustments, can be fine-tuned in increments of 7.5 degrees, accommodating patients from children to adults.
Folding legrest chair enabling easy access for all patients, especially children, elderly and patients using a wheelchair.
Also suitable to examine the patient’s dentition from the 6 o’clock position for orthodontic therapy.
Chair stick switch
– Hands-free, hygienic and intuitive control (patent pending)
Power headrest option
– Stressless headrest with the full 120 mm stroke and the easily adjustable neck angle
– Motorised headrest with hygienic hands-free operationDr.Table
Low to High
Holder type
The table’s vertical range of motion is 525-1,505 mm for the contour type
The table is held by a flexible arm, which can bemoved with a force 50% lighter than the previous models.Feel Light, Less Fatigue
Rod type
With rods of 900 mm in length, the delivery system makes it easy for the dentist/dental assistant to treat patients from the 8 o’clock direction. The hoses are light and flexible so that they reduce the burden on the wrists of dentist/dental assistant administering treatment over many hours.
Release from Weight
Place type
The dentist/dental assistant can pick up a handpiece and start treating patients right away without the need to re-hold the handpiece. Since the roller guide holds the weight of the hose, the dentist/dental assistant is freed from burden from the shoulder to the hand. They don’t need to look back at the placeholder when returning the handpiece.
Intuitive Control
Touch Your Style
Interface
The interface has been designed to improve efficiency and reduce stress during treatment. When a handpiece is chosen and picked up, the screen displays only necessary information, helping the dentist concentrate on the treatment.
Motor
– Four different settings can be saved, allowing intuitive operation
– Rpm, torque and rotational direction choosable with one touch of the screen
Scaler
– Treatment models (periodontal, root canal and scaling) choosable with one touch of the screen
Precise Control
Foot controller
The foot controller is compact and highly functional, allowing the dental water jet or chip-blow from the handpiece to be turned ON and OFF without using the hands. As an option, the controller is available with wireless technology.
*The wire for wireless foot controller is included.
Sideways operation
– Easy adjustment by sideways position and step-on action
– Quick and intuitive manner of setting the maximum rpm for the handpieceHygiene Options
Improved Cleaning Performance
Cuspidor
The space inside has been expanded for a large-capacity cuspidor. With the water clean system and the separator, a high level of hygiene can be maintained.
Stay Clean
The hygienic condition inside the chair unit is maintained by water line flushing, so that patient-friendly treatment can be administered. As an environmentally friendly option, the unit comes with a separator or a separator with an amalgam collector, which helps reduce facilitating everyday maintenance.
Dismantling of the rod holder
– Easy dismantling of the end parts for cleaning
Autoclavable holder option
– Autoclavable outlets are detachable for cleaning
Detachable light components option
– Removable lens cover and autoclavable light handle
– Easy to clean by single lever action
Detachable bowl
– Detachable ceramic bowl
– Easy to keep it clean
Flushing system option
– Prevents biofilm build up and bacterial growth in the handpieces hoses.
Water bottle option
– With low water warning indicator
– A sliding cuspidor cover for daily maintenance
Suction line clean system
Color Variations
Leather Color
The colors come in four themes: warm, cool, earth and vitamin. Any choices from these leather colors should match the interior appointments of your clinic. The upholstery can be chosen from seamless, seam and luxury type.
